产品描述

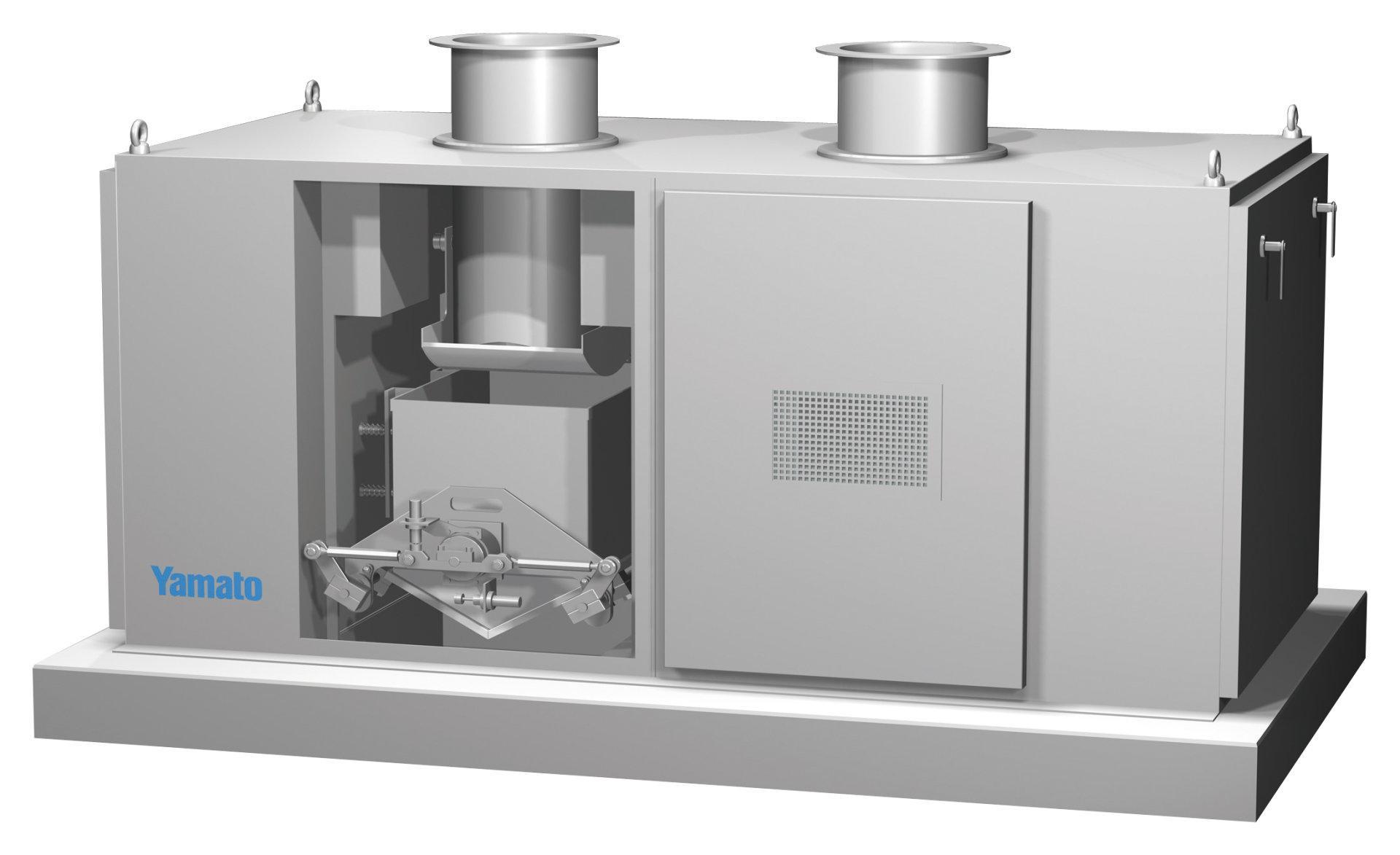

FNL-308CC定量包装秤
高精度高速度带来高收益,安全可靠,减少异物混入
Improved profits through high accuracy and high speeds, as it provides safety and security through reduced contamination from foreign objects.
优化供料装置实现高速计量
High-speed weighing by optimal loading gates
异物混入防止机械(专利申请中)使得计量干净
Clean weighing by machinery that reduces foreign objects(patent pending)
触摸屏控制器使得调整操作简单
Adjustment operations are made easy by touch-panel controllers(Option)
308系列包装秤是日本大和继306CC之后新研发的新颖高速、高精度包装秤。
适用于味精、PE/PVC粉末和颗粒等高价物料的包装,能为用户节约大量高价物料、创造巨额的经济效益。
最近在国内某知名味精企业安装调试的308CC全自动包装线,计量精度达到±1/1000,速度500包/小时,可对应95目以下所有规格的味精,运行稳定、计量精确,受到客户的肯定。
特点 Features
●高精度提高产能
High accuracy leads to improved yields
- 精度从1/1000提高到1/2500 -
- Accuracy raised from 1/1000 to 1/2500 –
例如,包装25kg一袋价格12元/Kg的原料,当精度从±25g提高到±15g…一小时装满600袋,1天(8小时)4800袋,1个月约14万袋,1年约170万袋,按重量计算约17吨。从经济效益来看,意味着收益将增加20万元。
For instance, when you pack 25 kilograms of raw material with each kilogram priced at 12 Yuan, and when accuracy is raised from ±25 grams to ±15 grams…Then when 600 bags are replenished an hour, that would make 4800 bags per day (based on eight-hour days), approximately 140000 bags per month, or 1.7 million bags a year, which calculates to about 17 tons. In monetary terms, that would mean a yield effect gain of 210 thousands Yuan.
●高速化减少初期投资
Cutting initial costs through high speeds
- 从2联到1联,降低初期投资额-
- Reducing initial investments by going from two lines to one. -
例如,当2联改为1联,3联改为2联成为可能…节省了设备安装空间,高速运行缩短了单联的运行时间,省电的同时维修时间也减半,降低了运行成本。
For example, when it becomes possible to go from two to one lines or from three to two lines…then installation space is conserved, line operation times are shortened through high speeds, power usage is cut, and even maintenance times are halved, reducing your running costs.
●无异物混入
No contamination from foreign objects
- 安全●安心 -
- Safe and secure -
由于在设计上将所有滑动部件与计量室分离,不会有异物和磨损颗粒的混入。
There is never any contamination from foreign objects from wear debris, because the design separates all sliding parts from the weighing chamber.

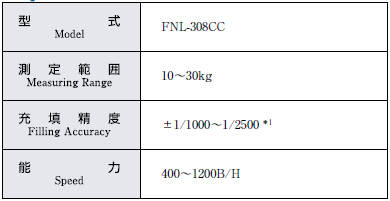

规格 Specifications
用途 Applications
树脂粒子、豆类、精米、肥料、饲料等150μm以下流动性好的物料。
Rasin pellets, beans, rice, fertilizers, feeds those less than 150μm with good flowing characteristics.

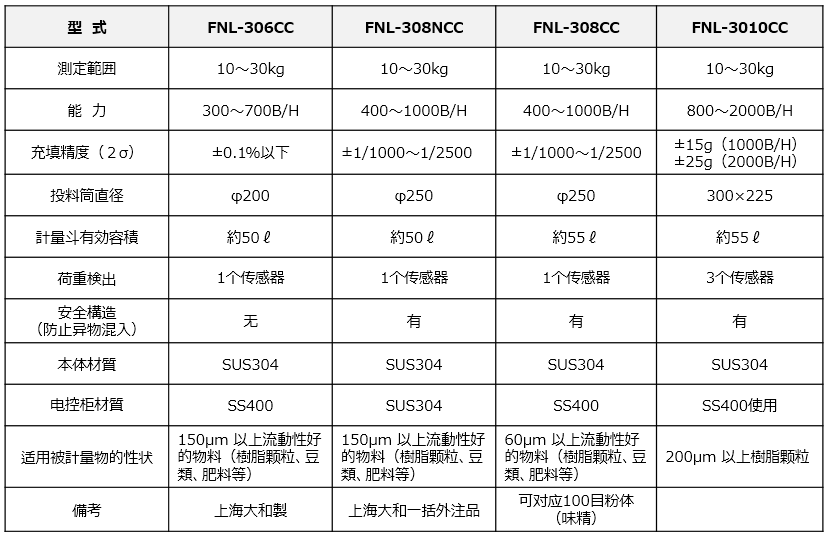

各种包装秤的比较 Comparison

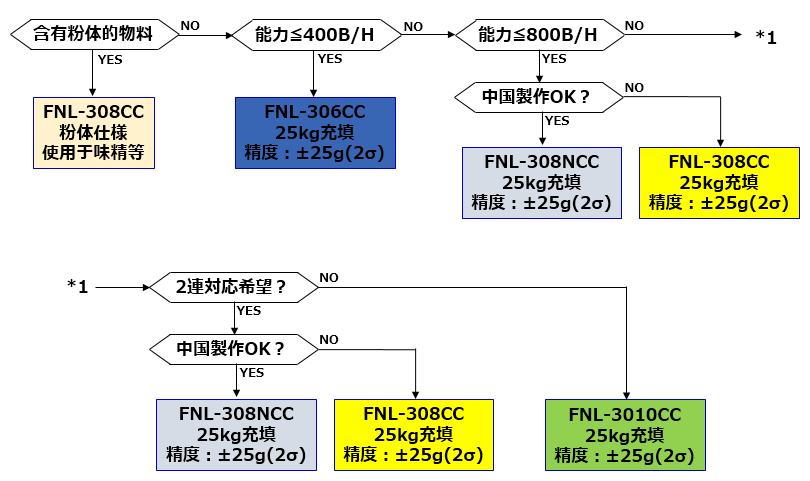

包装秤的选择 How To Choose
某味精企业在80~95#味精包装中已采用了10多台25kg级308CC包装秤,平均每袋节约味精50~80克,折合人民币0.4~0.64元,三个月即可收回投资,得到了用户的好评。
某PCV粒子生产厂家的包装秤速度800包/h,精度预加量是100g/次。大和包装秤的速度是1000包/h,精度预加量25g/次。按照这个测算,800包/h*24h*30日*(100—25)=43.2吨,也就是说:1台秤一个月就能节约原料43.2吨,价值28万。一个月就能节约一台秤。就包装线而言:相较于包装机,秤是大厨、直接产生经济效益。

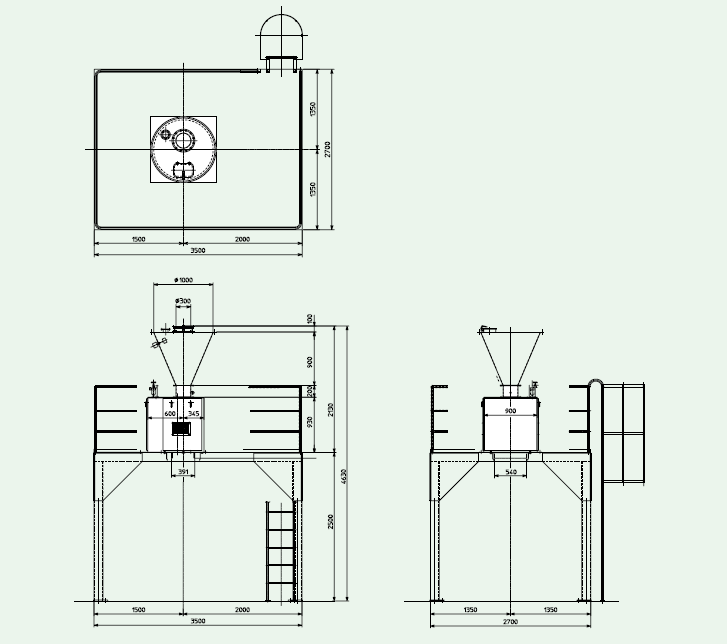

外形图 Dimensions (mm)
