工业秤-差分式粉体供料阀
1/1
浏览量:
1000
1
产品描述
差动式粉体供料阀(差动阀)
Differential powder feeding valve (differential valve)

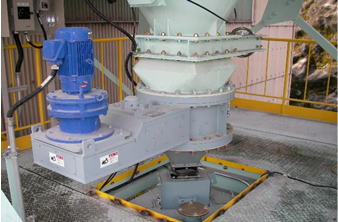

差动阀外形及上下连接
Differential valve outline and connection
差动阀隔断了料槽的压力,杜绝了搭桥和垮料,彻底解决喷料、冒灰。
Differential valve cuts off the pressure in the feed chute, prevent bridging and breaking of materials, and thoroughly solve spraying and blowing dust.

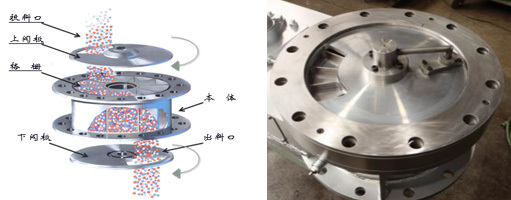

差动式粉体供料阀(差动阀)原理
Differential powder feeding valve (differential valve) principle
本体的上下法兰与上下料仓连接,上下阀板顺时针转动,投料口和出料口相差180°。
物料由投料口进入格栅,阀板转动180°后物料由出料口排出。
